Product Brief
Organic fertilizer dryers include various types such as chicken manure dryer, cow manure dryer, horse manure dryer, pig manure dryer, duck manure dryer and goose manure dryer. The finished product of the organic fertilizer dryer features fine particles. The dried product can be used as a culture medium for planting the edible fungus Agaricus bisporus, and can also be sold as feed for breeding tortoises, fish, snails and other animals.
【Discharging Moisture】: ≤10%
【Processing Capacity】: 3-20t/h
【Application Scope】: Chemical industry, building materials, agricultural drying and other fields
【Applicable Materials】: Livestock manure, distiller’s grains, soybean residue and other agricultural and sideline products
Product Advantages
- Adopts fluid and sealed drying technology, achieving pollution-free operation and higher energy efficiency;
- Equipped with a high-efficiency deodorization system for a friendly working environment;
- A scattering device is added to the drying system to prevent poultry manure from caking.
Working Principle

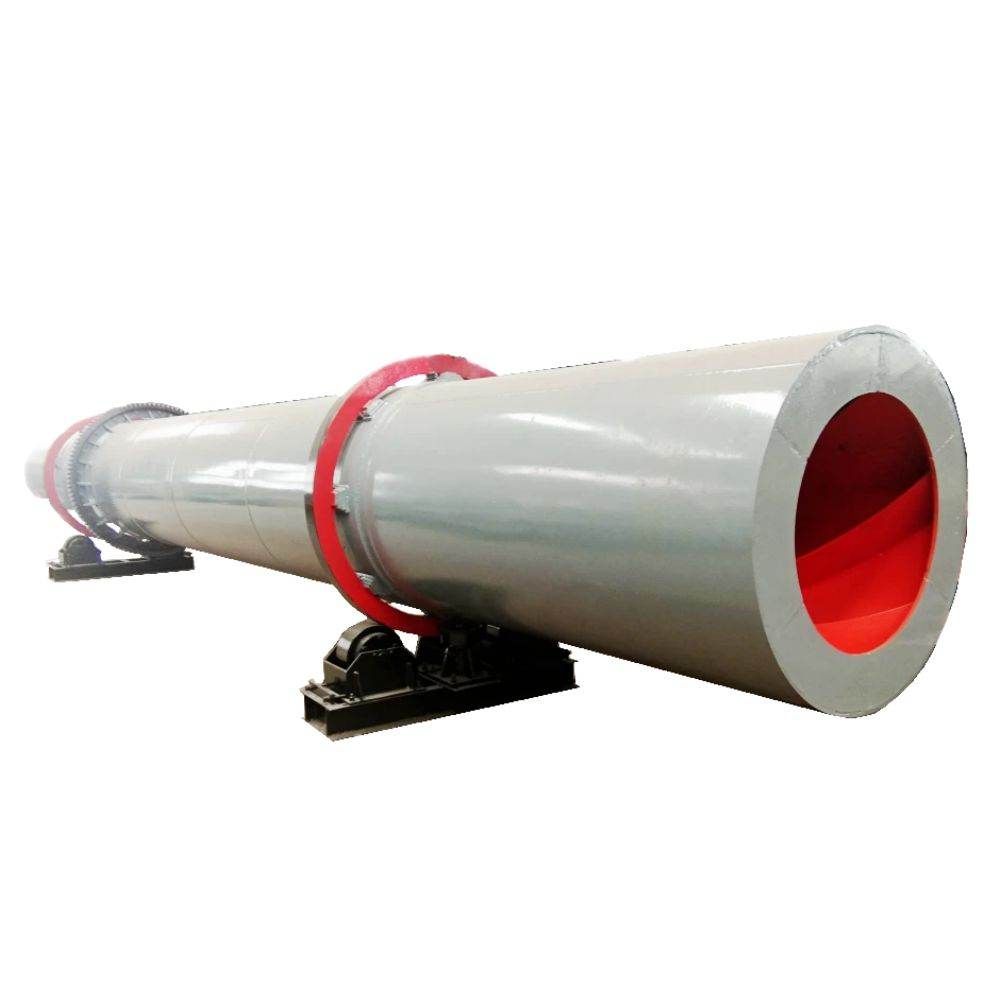

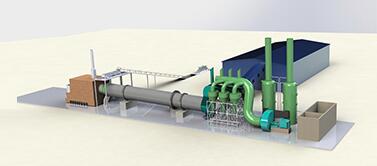

The organic fertilizer dryer is a drying equipment composed of a heat source, feeding elevator, feeder, rotary drum, material crushing device, discharger, induced draft fan, dust collector, deodorizer, unloader and power distribution cabinet. After dewatered wet materials are fed into the drying equipment, they are turned over by the uniformly arranged lifters inside the drum, which makes the materials disperse evenly and fully contact with hot air, accelerating the heat and mass transfer during drying. In the drying process, driven by the inclined lifters and heat medium, the materials move to the star unloader at the other end of the drying equipment and are discharged as finished products.
The heat carrier is generally divided into hot air, flue gas and other types. After passing through the rotary drum dryer, the heat carrier usually needs to go through a cyclone dust collector to capture the materials carried in the gas. If it is necessary to further reduce the dust content of the tail gas, the gas shall be discharged only after passing through a bag filter or wet dust collector and then a deodorizer.
Technical Parameters
Technical Parameters of Poultry Manure Dryer
| Model | Inclination (°) | Rotating Speed (r/min) | Inlet Temperature (℃) | Power (kw) | Volume (m³) | Processing Capacity (t/h) | Weight (t) |
|---|---|---|---|---|---|---|---|
| Φ800×8000 | 3-5 | 3-8 | ≤700 | 4 | 4.01 | 0.8-2.0 | 3.5 |
| Φ800×10000 | 3-5 | 3-8 | ≤700 | 4 | 5.02 | 0.8-2.5 | 4.5 |
| Φ1000×10000 | 3-5 | 3-8 | ≤700 | 5.5 | 7.85 | 1.0-3.5 | 5.6 |
| Φ1200×10000 | 3-5 | 3-8 | ≤700 | 7.5 | 11.30 | 1.8-5 | 14.5 |
| Φ1200×12000 | 3-5 | 3-8 | ≤700 | 11 | 13.56 | 2-6 | 14.8 |
| Φ1500×12000 | 3-5 | 2-6 | ≤800 | 15 | 21.19 | 3.5-9 | 17.8 |
| Φ1800×12000 | 3-5 | 2-6 | ≤800 | 18 | 30.52 | 5-12 | 25 |
| Φ2200×12000 | 3-5 | 1.5-6 | ≤800 | 18.5 | 45.59 | 6-15 | 33 |
| Φ2200×18000 | 3-5 | 1.5-6 | ≤800 | 22 | 68.38 | 10-18 | 53.8 |
| Φ2200×20000 | 3-5 | 1.5-6 | ≤800 | 30 | 75.98 | 12-20 | 56 |
| Φ2400×20000 | 3-5 | 1.5-5 | ≤800 | 37 | 90.43 | 18-30 | 60 |
| Φ3000×20000 | 3-5 | 1.5-5 | ≤800 | 55 | 141.3 | 25-35 | 78 |
| Φ3000×25000 | 3-5 | 1.5-5 | ≤800 | 75 | 176.6 | 32-40 | 104.9 |
